Hot selling 280kg( 600Lbs ) Stainless Steel Waterproof Electric Magnetic Lock

$167.39

Product Description Hot selling 280kg( 600Lbs ) Stainless Steel Waterproof Electric Magnetic Lock Waterproof Magnetic lock with 600lbs (280kg) holding force for single door Product Parameter Parameter Description Lock Size...
Product Description

Hot selling 280kg( 600Lbs ) Stainless Steel Waterproof Electric Magnetic Lock


Waterproof Magnetic lock with 600lbs (280kg) holding force for single door

Product Parameter
Parameter Description
Lock Size :
220Lx48Wx23H(mm)
Armature plate:
190Lx190Lx45Wx11H(mm)
Holding Force :
280kg (600Lbs)
Input Voltage :
12/24VDC Dual Voltage
Suitable for door:
Wooden door , Glass door ,Metal door , Fireproof door
Singal Output :
Lock singal Status NO/NC/COM/+/-
Feature:
Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
Weight:
2.5kgs
Waterproof
IP68

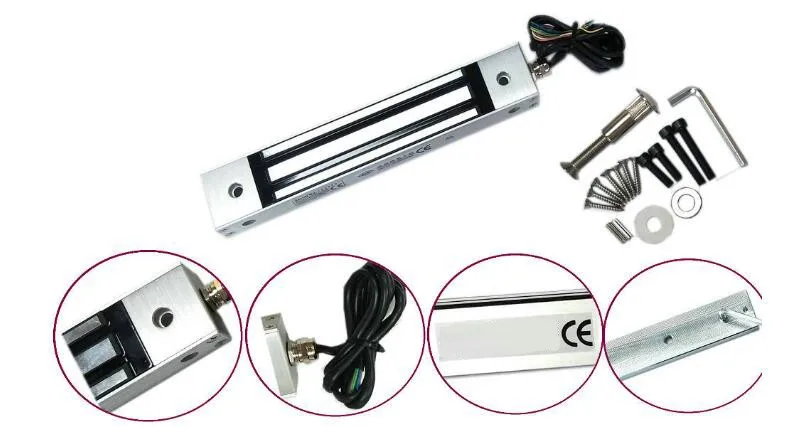

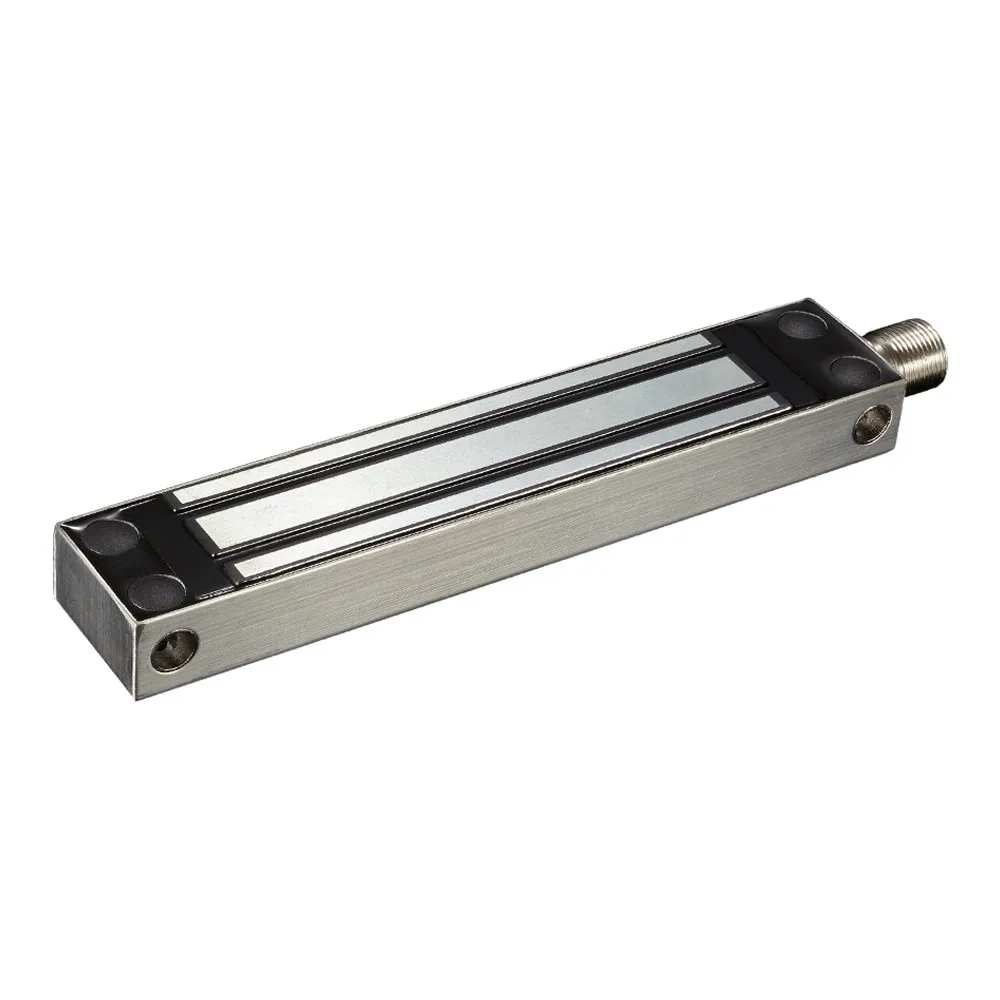

Detailed Images
Product Advanatge

- Collinear Load Test 280kg, 600pounds.
- Dual Voltage 12 or 24 VDC(optional).
- The Standard Voltage is 12VDC when Finished.
- MOV Provides Reverse Current Protection.
- Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
- LED Indicates the door Status.
- Lock Status sensor(NO/NC/COM)
- Door Status sensor(NO/NC/COM)
- Anti-Residual Magnetism Designed.
- High Strength Material,Anodized Aluminum Housing.
- Design without Mechanical Failure.
- Increase the holding Force,Dual Insulative Housing.
- CE Certificate by European Union,MA Certificate by China Public Security Office

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, we do provides 2 years warranty for relative products.
- On the contrary, Walden will cahrge extra if repair.
- More information, please browse our service center.

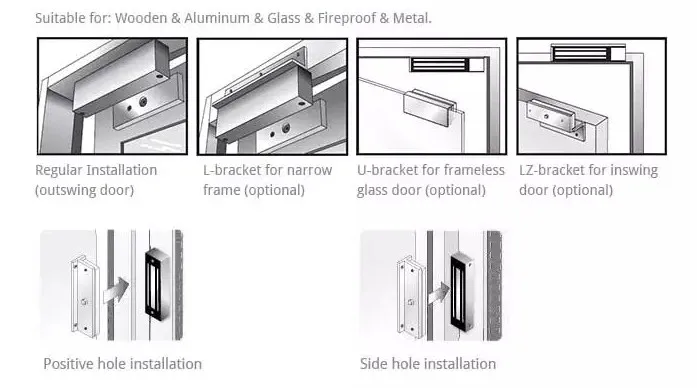

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.

Packaging
Magnetic Lock packaging: 1unit per box, 10pcs per carton,
Carton size : 35*30*16cm , Gross Weight :25kg.
