Waterproof UFH Access Control Reader Proximity Long Card Range Reader

$356.36

Product Description Waterproof UFH Access Control Reader Proximity Long Card Range Reader -1, Capability of Reading/Writing agreement of ISO18000-6B ,EPC Passive tags and software programmable. -2, Able to decode ISO-18000B,...
Product Description

Waterproof UFH Access Control Reader Proximity Long Card Range Reader

-1, Capability of Reading/Writing agreement of ISO18000-6B ,EPC Passive tags and software programmable.
-2, Able to decode ISO-18000B, EPC.
-3, Reading Rang(Max).: 5M Reading
-4 Free SDK and configuration software shapes

Product Parameter
Parameter Description
Model
walden 812A Integrated UHF Reader (2.5M)
Frequency
1Sm 902-928MHZ
Operation Mode
Fixed Frequency or FHSS or Software Programmable
RF Power Output Adjustable
Power Output Adjustable Range:0.1W --- 1W
Built- in Antenna Type
Built- in Antenna Type
Communication Ports
1)RS-232 2)RS-485 3)Weigand 26 bits \ 32bits
Communication Rates
Up to 57,600bps and software programmable
Reading/Writing Capability
1) Capability of Reading/Writing agreement of ISO18000-6B ,EPC Passive tags and software programmable. 2) Able to decode ISO-18000B,EPC. 3) Reading Rang(Max).: 5M Reading Rang(Reliable):2.5M
Programmable Application Platform
1) Allows Programmable Interface with host applications; 2) Currently Supports Visual Basic or VC applications.
Power Consumed
+5V DC, Average power of less than 2W

Product Advantages

1. Wake up tags:the tag which only be waked up can communicate with reader, prevent the disturbing from other tags, ensure
the correct information between reader and system's tag.
2. Read data:it can get the ID number of tag, and also get the data which in the specify area, multi tags
reading will be available.
3. Write data: can write data in specify tag's storage area.
4. Can connect with the device which has W26 and W34 interface, no need to develop.
5. Communicate with controller or PC, that can get the data; provide SDK development kit, user can develop it.

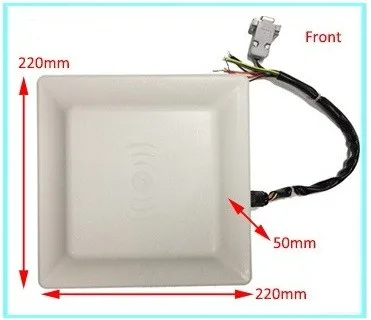

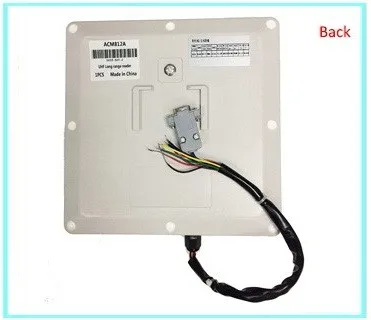

Detailed Images

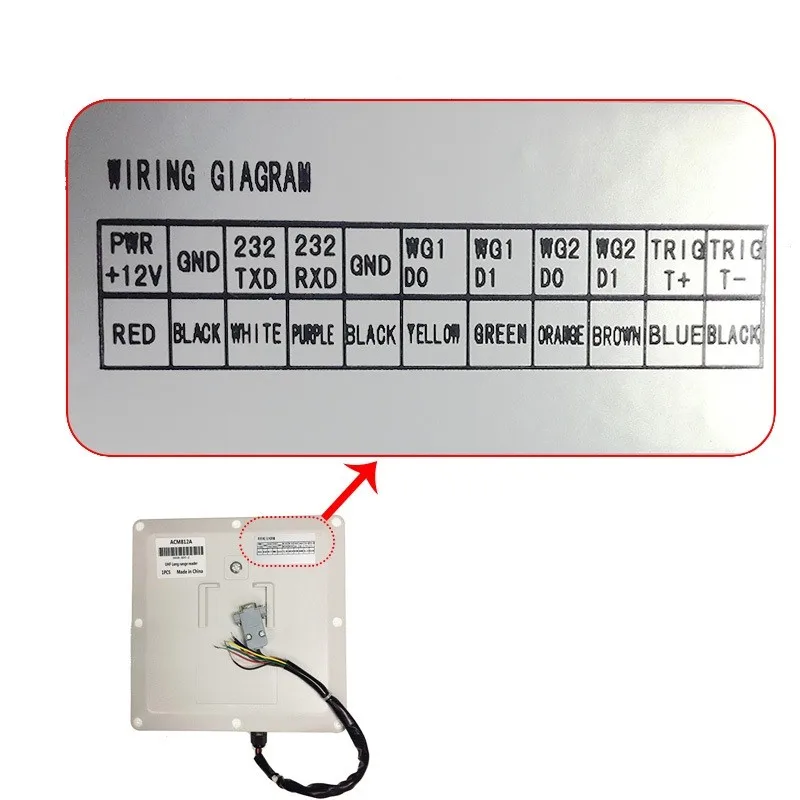

Wiring Diagram of RFID UHF reader and writer

Power
GND
485+
485-
WG D0
WG D1
Trigger T+
Trigger T-
RXD
TXD Ground
RED
BLACK
BROWN
ORANGE
YELLOW
GREY
ROSE RED
BLACK
PURPLE
white black

Quality Warranty

 - Warranty Service will be honored if the damage is not caused by human, we will provides 2 years warranty for relative products.
- On the contrary,  we will will cahrge extra if repair.
- More information, please browse our service center.

Click here to order and have your FREE SAMPLE in 3 days!!!
We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!
We are looking forward to forming successful business relationships with new clients around the world in the future.

Application

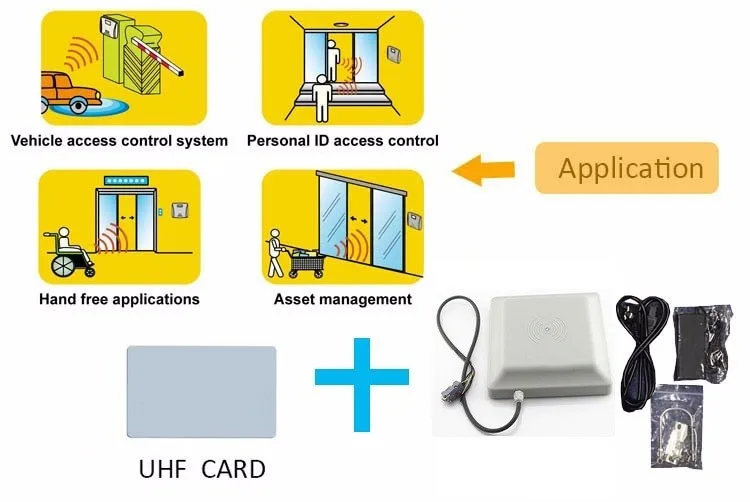

Application of RFID UHF reader and writer
1, Transportation management
2, Vehicle management
3, Road and bridge toll
4, Custom management
5, Warehouse management
6, Car parking management
7, Access control management
8, Production management

Packing & Delivery

Packaging
UHF reader packaging: 1unit per box, 10pcs per carton,
Single size : 32*32*6cm , Gross Weight :4kg.


We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .

Related Products

We are Professional uhf reader manufacturer , Except the walden 812A , we also can supply walden 802A , walden 818A ,walden 801A . The main difference of them are the reading distance . Also , walden 801A can be used to read multi-tag(200 pcs at one time ) . For more detail , please click following picture .

walden 812A
2-5m reading range UHF reader
Wiegand 26 output, RS232/485

walden 818A
10-20m long range UHF reader
Wiegand 26 output, RS232/485

walden 801A
10-15m UHF reader
Wiegand 26 output, RS232/485

walden 802A
8-10m reading range UHF reader
Wiegand 26 output, RS232/485

walden  8017
UHF Handheld Reader
UHF+WIFI+GRPS

walden 918K
UHF 4-Antenna Channel High Performance Fixed Reader

Your May Need

walden -UHF-M . UHF tag 860-915mhz RFID anti-metal tag 148*25*4mm ;walden-UHF-S UHF stikcer 860-915mhz RFID sticker 86*54mm;walden 217 UHF USB Desktop Reader/Writer; walden 26C 125Khz EM Long range reader ; walden 09G Active 2.4G Reader Long Range ,distance 10~50meter,weigand 26/34 output

walden 217
UHF USB Desktop Reader/Writer

walden 26C
125Khz EM Long range reader
70cm-1meter distance

walden 09G
Active 2.4G Reader Long Range distance 10~50meter,weigand 26/34 output

UHF anti-metal tag
walden-UHF-M . UHF tag 860-915mhz RFID anti-metal tag 148*25*4mm

UHF stikcer
walden-UHF-S UHF stikcer 860-915mhz RFID sticker 86*54mm

walden S001
UHF ETC Sticker
Anti-tamper /Anti-fake Sticke
